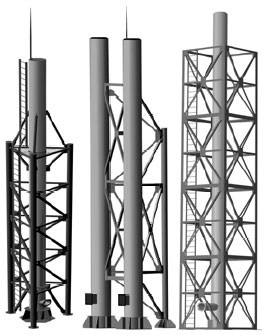

Steel smoke pipes in a frame
Monastyrishchensky plant of boiler equipment "Energometmash" manufactures industrial chimneys, which are designed to remove flue gases into the atmosphere and are complex engineering structures. The uninterrupted operation of industrial boilers depends on the technically competent design and operation of chimneys.
The diameter and height of the chimney are calculated in such a way that the entire volume of exhaust gases in all operating modes is discharged into the atmosphere.
The height of the chimney is determined based on the results of the aerodynamic calculation of the gas path, taking into account the provision of environmental standards for the maximum permissible concentrations of harmful substances during dispersion of combustion products in the atmosphere.
When calculating the chimney, the temperature of the flue gases, the slightly aggressive chemical environment of the flue gases, wind and snow loads are taken into account. In addition, chimneys must comply with the requirements of regulatory documents.
The Energometmash boiler equipment plant manufactures industrial chimneys in a frame with a diameter of 325 mm to 820 mm, a height of 15 to 32 m.
Diameter and height of manufactured industrial chimneys in a frame
| Chimney diameter, D, mm | Chimney height, H, mm |
| Ø 325 | from 15m to 32m |
| Ø 530 | from 15m to 31m |
| Ø 630 | from 15m to 30m |
| Ø 820 | from 15m to 32m |
| Ø 1020 | from 15m to 42m |
| Ø 1220 | from 15m to 42m |
| Ø 1420 | from 15m to 42m |
| Ø 1820 | from 15m to 42m |
As standard, the chimney shaft is made of carbon steel without external insulation. Up to an additional order, the carbon steel chimney shaft can be replaced by a stainless steel shaft with insulation and an external protective casing made of galvanized or stainless steel.
