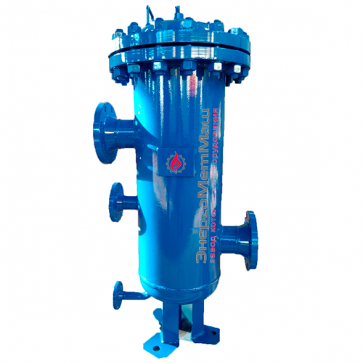

Fuel oil filter FM 40-30-40 and FM 40-30-5
Monastyrishchensky Plant of Boiler Equipment "Energometmash" manufactures fuel oil filters of the series "FM 40-30-40" and " FM 40-30-5" with a capacity of 30 m 3 /hour, which is used in the fuel oil industry for filtering fuel oil. Filters are available for coarse and fine purification of high-viscosity fuel oils from solid residues of oil fractions and mechanical impurities.
The supply of such equipment is as follows: the Customer sends a written application to the sales office, after which the application is calculated at the production site and either a commercial offer with the terms of delivery and cost is sent to the Customer, or an invoice and a Supply Agreement are issued. The delivery time for the fuel oil filter can be from three to thirty days, depending on the performance of the fuel oil filter.
Fuel oil filters are designed for coarse and fine purification of high-viscosity fuel oils from solid residues of oil fractions and mechanical impurities.
Fuel oil is cleaned (filtered) using a stainless steel mesh mounted on a special frame inside a vertical housing. The filter element is periodically cleaned with steam while the filter is stopped, and the retained fractions are removed through a special pipe without disassembling the filter.
Technical characteristics of the fuel oil filter " FM 40-30-40" and " FM 40-30-5"
| brand fuel oil filter | Productivity, t/h | Working pressure , MPa | Square surfaces filtration, m 3 | Temperature fuel oil, °С | Diameter filter, mm | Height filter, mm | Weight filter, kg |
| FM 40-30-40 | thirty | 4.0 | 0.315 | 130 | 325 | 1 330 | 129 |
| FM 40-30-5 |
For advice, additional characteristics and cost, please contact the sales department of the Energometmash plant .
